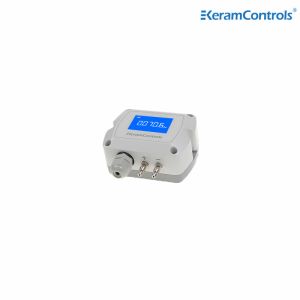

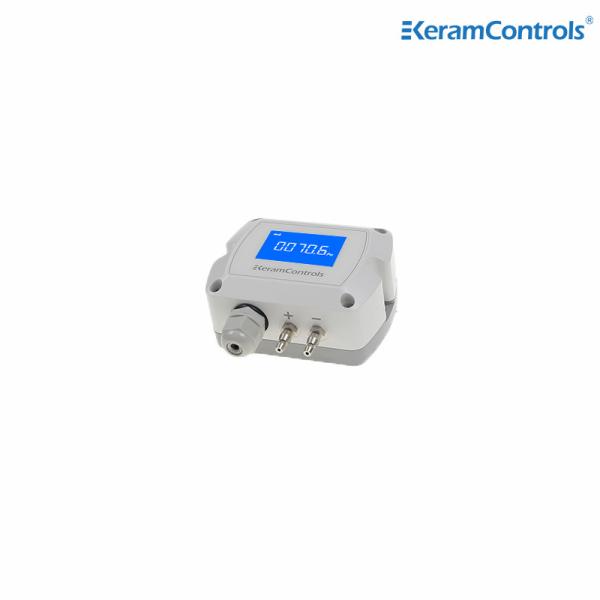

Replaceable Greystone Differential Pressure Transmitter With IP65 Protection

Name: Replaceable Greystone Differential Pressure Transmitter With IP65 Protection
Brand: KeramControls
Price: 69 USD

Wholesale Replaceable Greystone Differential Pressure Transmitter With IP65 Protection from china suppliers

Brand Name : KeramControls

Model Number : KDP210

Certification : CE

Place of Origin : China

MOQ : 10

Price : $69-$51/pic

Payment Terms : T/T, L/C

Supply Ability : 2000pic/month

Delivery Time : 7-10days

Packaging Details : Carton

Housing Material : PC&ABS，UL94V-0

Display : Blacklight LCD

Tolerated over pressure : x15

Accuracy : <±1% FS@-5 to +65℃

Protection : IP65/NEMA4

Output : 4-20mA/0-5V/0-10V/RS-485

Housing material : PC&ABS,UL94-V0

Contact Now

Resplaceable greystone differential pressure transmitter

Description

Differential Pressure (DP) transmitters measure the difference between two pressures. They use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side. The DP level transmitter reading can be either negative or positive depending on whether the low-side or high-side is the larger value. A DP transmitter can be used as a gauge pressure transmitter if the low-side is left open to the atmosphere.

Feature

Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
Auto zero manual calibration
Voltage, current, digital signal output
Standard accuracy <±1% FS
IP65 house protection

Application

HVAC system
Pharmaceutical clean rooms
Electronic clean rooms
Medical clean rooms
Commercial buildings
Public transport hub

Technical data

Model	KDP210
Measurement Units	Pa,mmH₂O,inWG,mmHG,KPa,mbar
Accuracy	<±1% FS@-5 to +65℃
Response Time	0.5s
Repeat Stability	±0.01 % at FS /Year
Resolution	0.1 Pa; 0.1 mmH₂O; 0.01mbar; 0.01mmHG
Media	Air and neutral gases
Operating Temperature	-20…+70℃
Storage Temperature	-40…+60℃
Power Consumption	＜1.5W
Tolerated over pressure	x15
Power Supply	16~30VAC/DC (3wire) / 18~30VDC (2wire)
Output Signal	4-20mA(2wire)
	4-20mA(3wire)
	0~5V/0~10VDC(3wire)
	RS-485
	Customized
Auto Zero	Manual calibration
Housing Material	PC&ABS,UL94V-0
Protection Class	IP65/NEMA4
Display	Backlight LCD display
Cable Gland	M16*1.5

Dimension(mm)
